Rotary Type Rain Boots Automatic Injection Moulding Machine NSK-375

Rotary Type Rain Boots Automatic Injection Moulding Machine NSK-375

Location:Taichung City, Taiwan

orCall 886-4-2533-1108

Description

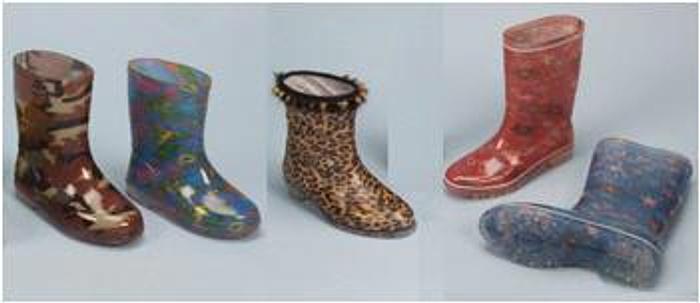

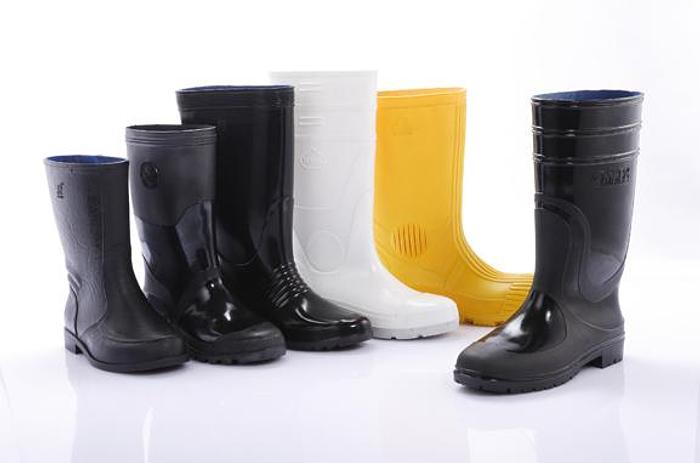

The molds of the former vertical injection molding machine for rain boots was liable to wear down. The quality of rain boots was not good and the machine was not easy to operate. Therefore, we adopted the latest technique to develop the "Auto rotary injection molding machine for rain boots”. The molds of NSK-375 can run the switch gear automatically and save the manpower. With the "Wind pressure auto molding system”, the operators can easily remove finished products from the molds without damaging the lasts so that the molds can last longer. Moreover, the NSK-375 adopts direct-pressure injection which generates high pressure. It can produce boots of different sizes at the same time. The high clamping pressure ensures the quality of products. The machine can produce boots of different sizes or heights simultaneously, which reduces production time. Furthermore, the machine also can produce sandals if we change the mold. The NSK-375 is the first machine with the photo-cell digital locating system in Taiwan. It is easy to adjust precisely the ejection quantity. The machine is specially designed for producing rain boots. It’s automatic, economical, efficient and easy to operate. The machine is controlled by hydraulic system and it can adjust clamping pressure and can work at high speed. The NSK-375 has eight (8) molds; freely select their usage; molds can be opened and closed manually or automatically. Besides the 16"(45mm) rain boots, it can also produce pumps, slippers, and sandals. With the "Wind pressure auto mold-opening device", the operators can remove the finished products from the molds without damaging the lasts. The molds can therefore last longer. Powerful mold clamping prevents burrs. Many different sizes of rain boots can be produced at the same time, sandals and rain boots can be produced simultaneously, too. The machine is suitable for P.V.C., T.P.R. and N.B.R…etc.

Specifications

ConditionNew
Mould station8 10 12
Mould available space600 x 690 x 188 600 x 690 x 188 500 x 700 x 188
Heater volume9 kw 9 kw 10 kw
Electric motor30 HP x 120 HP x 1 30 HP x 120 HP x 1 30 HP x 120 HP x 1
Mould clamping force200 Tons(Max.) 200 Tons(Max.) 230 Tons(Max.)
Max. ejecting volume1588 cm³/shot 1588 cm³/shot 1788 cm³/shot
Total electricity consumption47 kw 48 kw 49 kw
Machine dimension6700 x 3120 x 2100 m/m 7200 x 3420 x 2100 m/m 7700 x 3650 x 2130 m/m
Machine weight.13,000kgs 15,000kgs 17,000kgs
Two options for ejection quantity are availablea fixed quantity or full mold.
