Two Colour Rotary Type Automatic Soles Jointing & Ejecting Machine NSK-294B-2C

Two Colour Rotary Type Automatic Soles Jointing & Ejecting Machine NSK-294B-2C

Taichung City, Taiwan

orCall 886-4-2533-1108

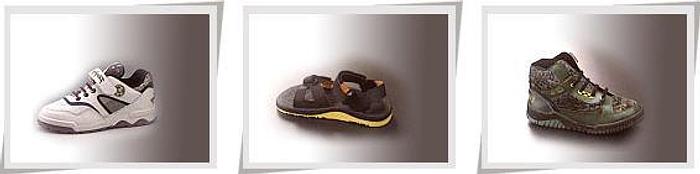

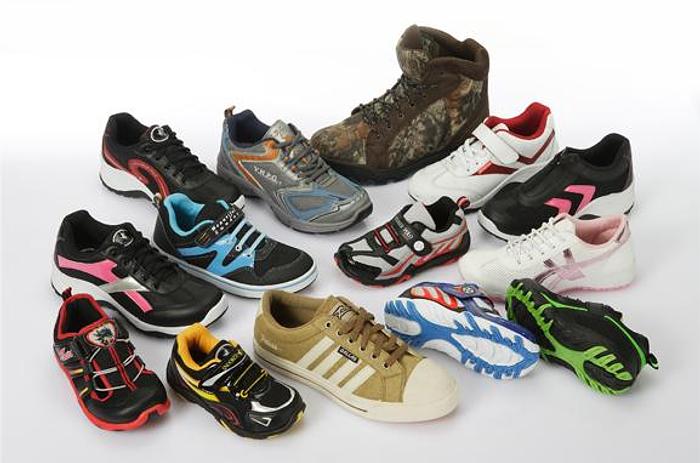

It completes two-color shoes making process directly which is instesd of the former complicated procedure of lasting, gluing and sole attaching. It is suitable for P.V.C. foaming, T.P.R. powder P.U. & N.B.R. Photoelectric digit control system with 3 patents edvides quantity of materials into sixteen steps to control ejection quantity respectively and precisely. The power of oil pressure open-mould and clamp-mould is great. The unique design of screw makes it easy to change color. The special oil pressure loop circuit and smooth movement of disk make locating precise and position will never move. As oil passage and electric circuit are separated.It's easy to maintain. Powerful pressure makes two colors melded. There is no color permeance and base color will keep well. The machine is controlled by computer synchronous system which makes movement  precise and without error. The machine is suitable for making sports shoes. Last pulling and Californian type can be produced at the same time. Single-color and two-color production can be done at the same time. Material passage can be automatically clamping to save labor cost.


Number of stations16 station
Size of mould availableL380 x W180 x H383 mm
Screw diameter72,60 mm
Max. injection volume730,450 cm3/shot
Thermal zone of barrel4x2
Motor20HP x 2, 7 1/2HP x 1, 5HP x 1 HP
Electric heating consumption(8+7+16) : 31 kw
Power consumption (fullload) for wiring70 kw
Volume of oil tank950 L
Machine dimensionL:9800 x W:3870 x H:2170 mm
Machine weight20 tons
